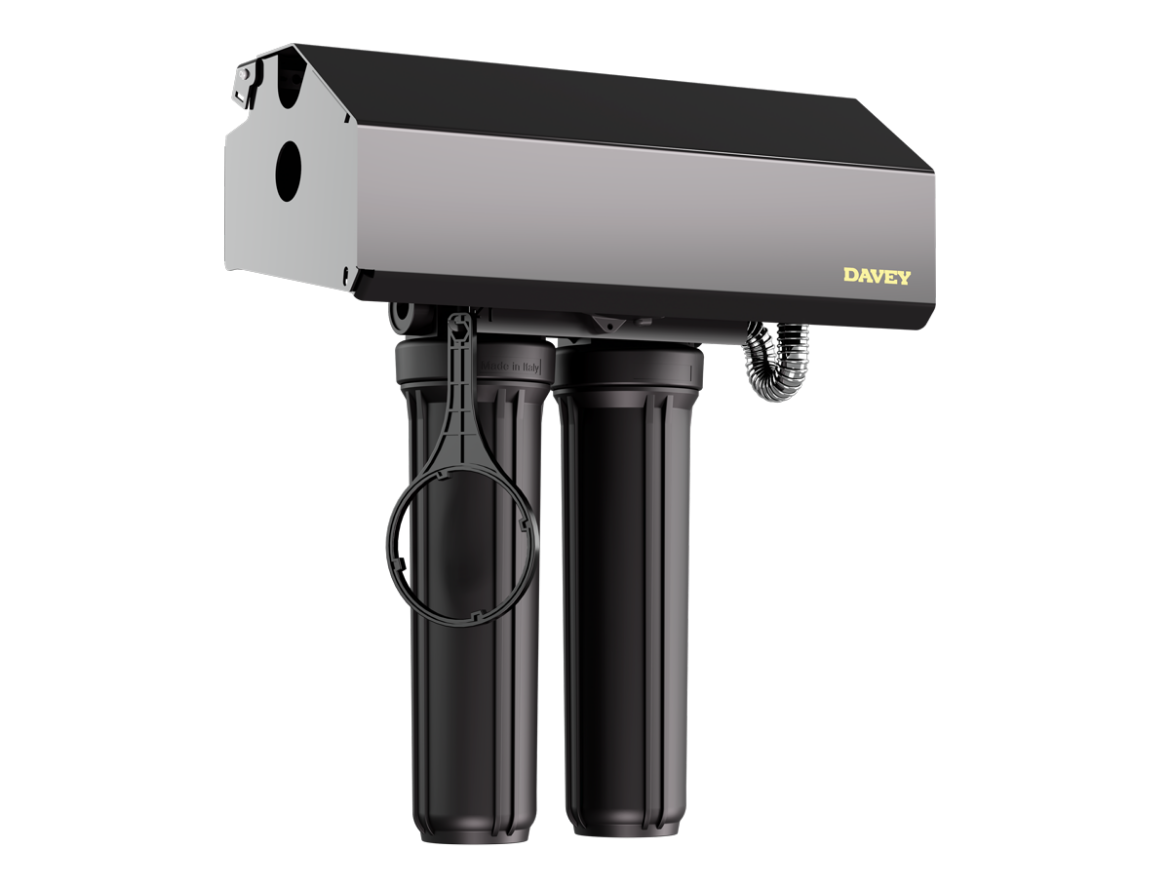

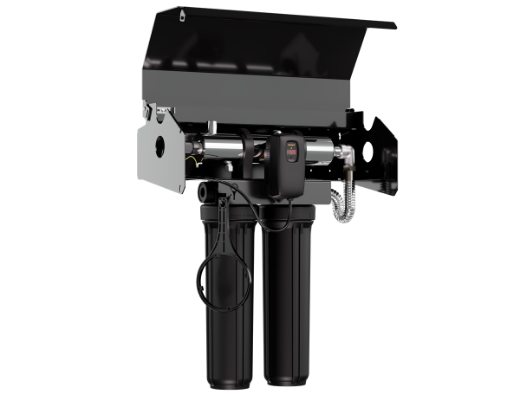

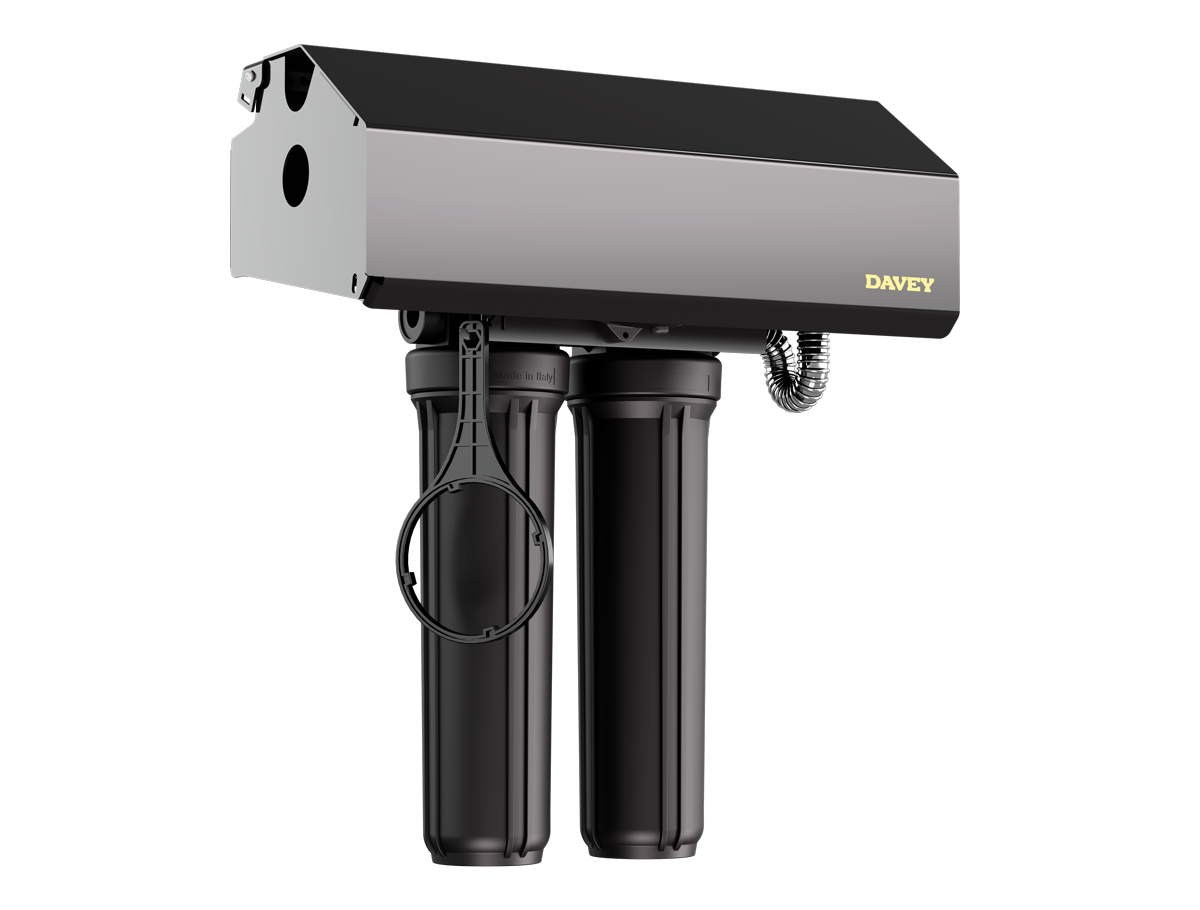

- Davey AquaShield 3 stage UV
- Continuous clean, safe and fresh water
- “For effective disinfection and filtration of your rain, bore and surface water, go UV. The NEW hardworking, Smart and Xtra Smart†3-Stage UV Systems are relentless in removing the unwanted, down to microscopic detail. What remains is crystal clear water, free from chemical taste and smell. As fresh as it gets. ”
Smart 3 Stage UV System features:
- Fully RCM and Watermark certified
- Supplied pre-assembled, saving installation time
- High maximum operating pressure 827kPa (120 psi), and single manifold heads meaning no potential leaks between heads
- 316L stainless steel, axial flow chambers allow for optimum efficiency plus lamp and sleeve service without the need to drain the water
- 10,000 hour lamps - the longest residential lamp life on the market
Reverse flow capability allows for install versatility
SPARE PARTS & OPTION |
|
Part code | Description |
MCS-C | Cover |
KMCS | Complete unit with filter cartridges |
20PP20J | Poly pleated 20 micron rated cartridge (housing 1) |
1PS20J | Poly spun 1 micron rated cartridge (housing 2) |
MC-HOLP | High output UV lamp (O-ring included) |
MC-HOSL | Quartz sleeve (O-ring included) |
MCS-CONT | MCS controller |
MC-CONT-PC | Controller power cord - IEC x AUS/NZ 3 Pin male |
DM130033 | Temperature Relief Valve - Thermal bleed valve activates when water temperature exceeds 32-35°C |
DM160018 | Replacement Dual Cap and twin housing assembly |
DM310177 | Filter housing replacement O-Ring |
WFH45 | Replacement filter housing spanner |
DM310039 | Replacement sleeve spring |
Note: Keyed technology (lamp key) is not used on the MCS/KMCS Keys found with new lamps can be discarded. Keys are only used with the MCXS/KMCXS Xtra Smart Controller
ELECTRICAL DATA |
|
Supply Voltage | 90-265V ~ |
Supply frequency | 50-60Hz |
Power (Total) | 57W |
Phase | 1 |
Lamp | 45W |
Max input current | 0.24A |
Max output current | 800mA |
Water quality is extremely important for optimum UV performance. Maximum recommended parameters are as follows:
WATER QUALITY |
|
Hardness | 120 mg/L – if hardness level is 120 mg/l or slightly below the quartz sleeve must be cleaned periodically in order to ensure efficient UV penetration; if above the water must be softened. |
Iron (Fe) | <0.3 ppm (0.3mg/l) |
Manganese (Mn) | <0.5 ppm (0.5mg/l) |
Turbidity | <1 NTU |
Tannins (organics) | <0.1 ppm (0.1mg/l) |
UVT (transmittance) | >85% (Please contact Davey if water has a UVT that is less than 80% for pre-treatment recommendations) |
UV DISINFECTION SYSTEM |
|
Model | MCS/MCXS |
Flow Rate (@ 16 mJ/cm2 @ 95% UVT) | 114 L/min |
Flow Rate (@24.2 mJ/cm2 @ 95% UVT) | 70 l/min |
Flow Rate (@ 30 mJ/cm2 @ 95% UVT) | 56.8 L/min |
Flow Rate (@ 40 mJ/cm2 @ 95% UVT) | 45.4 L/min |
NOTE: Flow rates are based on flow velocity of 8.2 ft/sec (2.5 m/sec), flow rate limited to 84 L/min for 1″ port before significant pressure drop is realised.
