Technical Specifications
Brand | Bianco NXT |
Product Type | Pump Controller |
Bar | 10 Bar |
Kilo Watts | 1.5 |
Casing Material | Technopolymer |
Port Size Inlet | 1" BSPM Inlet |
Port Size Outlet | 1" BSPM outlet |
Volts | 240 |
Description

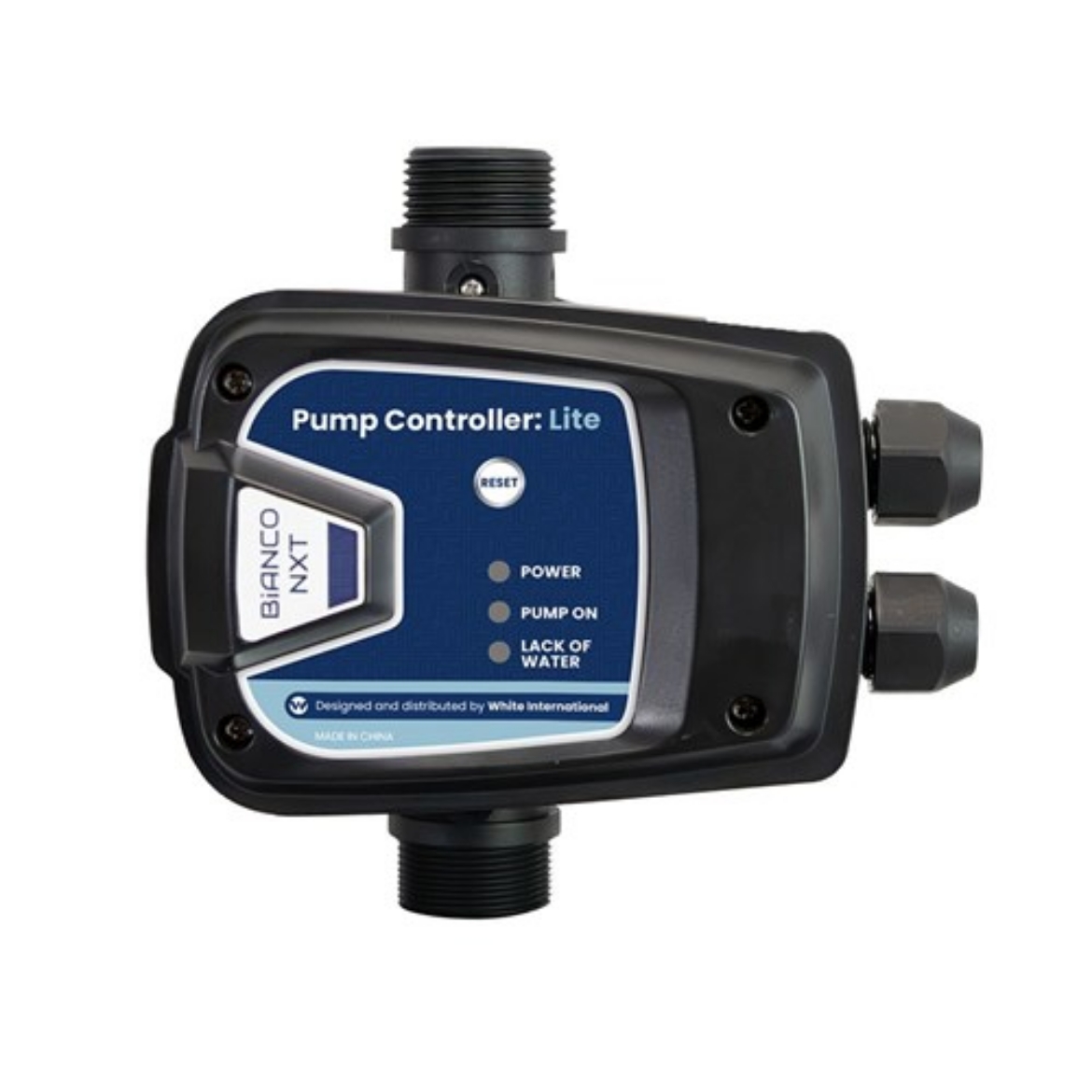

The nXt series of pump controls represents the next step in pressurised pump control.
Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust, proven architecture to guarantee a constant supply of pressurised water when and where you need it the most.
Ideal for pumps supplying clean, non-volatile liquids without fibres or solids in applications such as:
- Household water supply
- Irrigation
- Water transfer
- Washing systems
Pressure boosting
SPECIFICATIONS |
Input Voltage | 220-240 AC 1 Phase |
Max Current | 10 Amps |
Max Working Temp | 35°C |
Max Rated Pressure | 10 Bar |
Max Rated Flow | 70L/min |
Power Cable | 1.5m PVC 10 amp plug |
Inlet | 1" BSPM |
Outlet | 1" BSPM Fixed |
Ingress Protection | IP55 |
Automatic | Yes - Dry run protection |
Default Start Pressure | 2.2 Bar, adjustable 0.9 - 2.8 Bar |
Weight | 1.2kg |
